Kafre Images

calendar Nov 9, 2023 · 11 min read

Faces

North Face

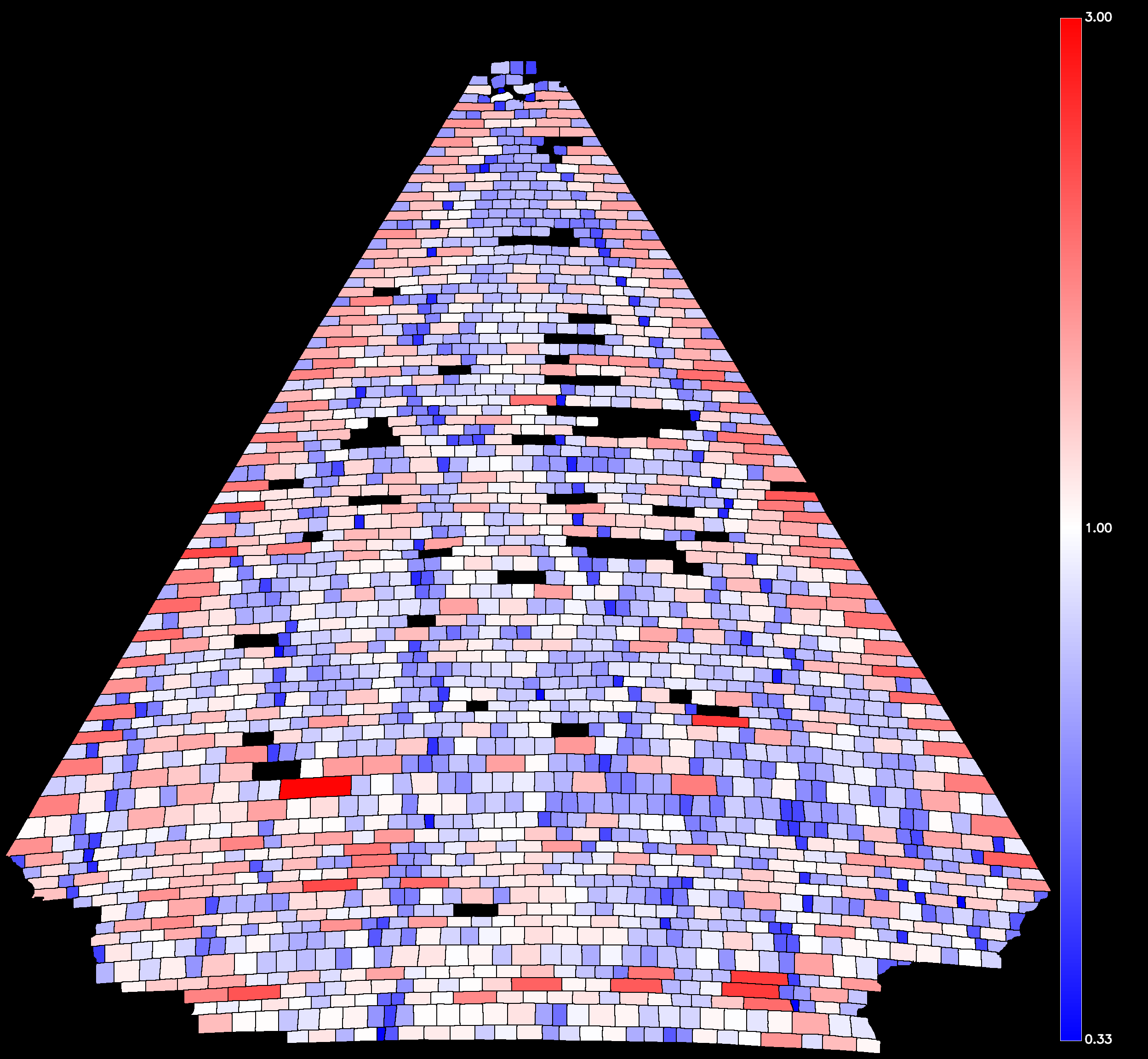

Relative width of each stone to the face average (North)
Coloured by width relative to the average, red = wider, blue = narrower

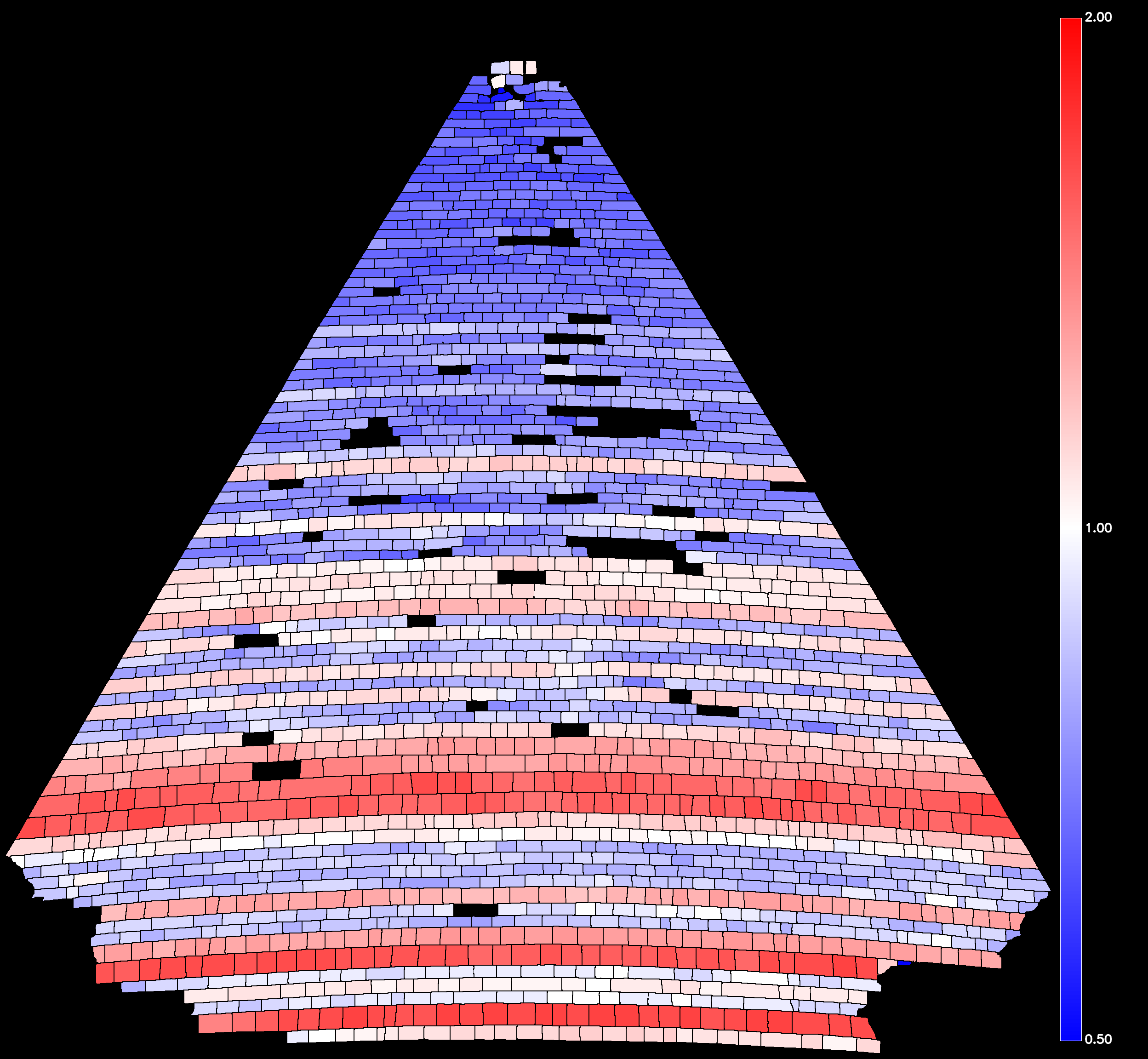

Relative height of each stone to the face average (North)
Coloured by height relative to the average, red = taller, blue = shorter

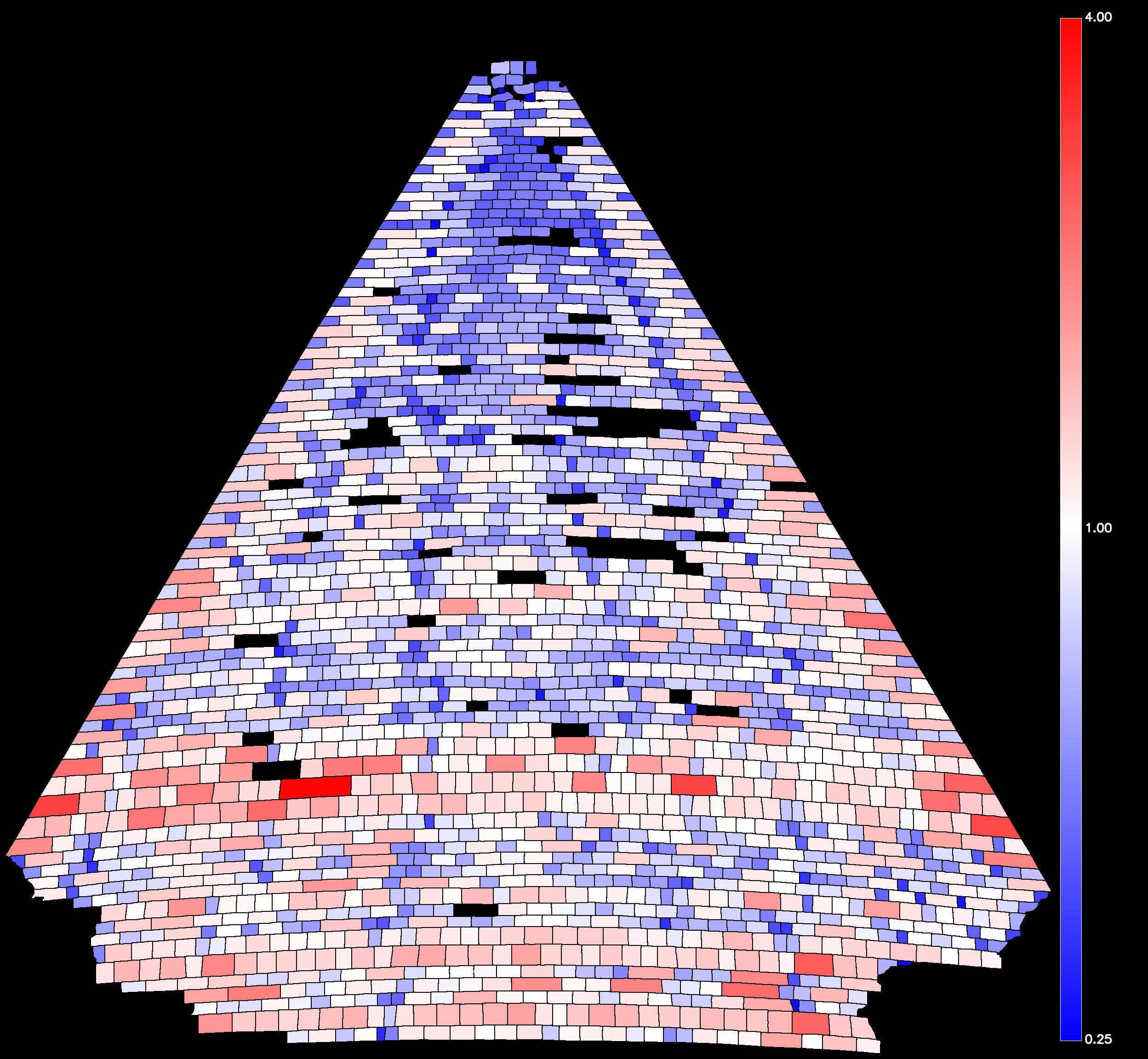

Relative size of each stone to the face average (North)
Coloured by size relative to the average, red = bigger, blue = smaller

Vertical offset of each stone from the edges of its course (North)
Coloured by vertical offset from the edges of the course, red = stone is above course edges, blue = stone is below course edges (note, course edge height is calculated as the average height of the closest 3 stones to the edge)

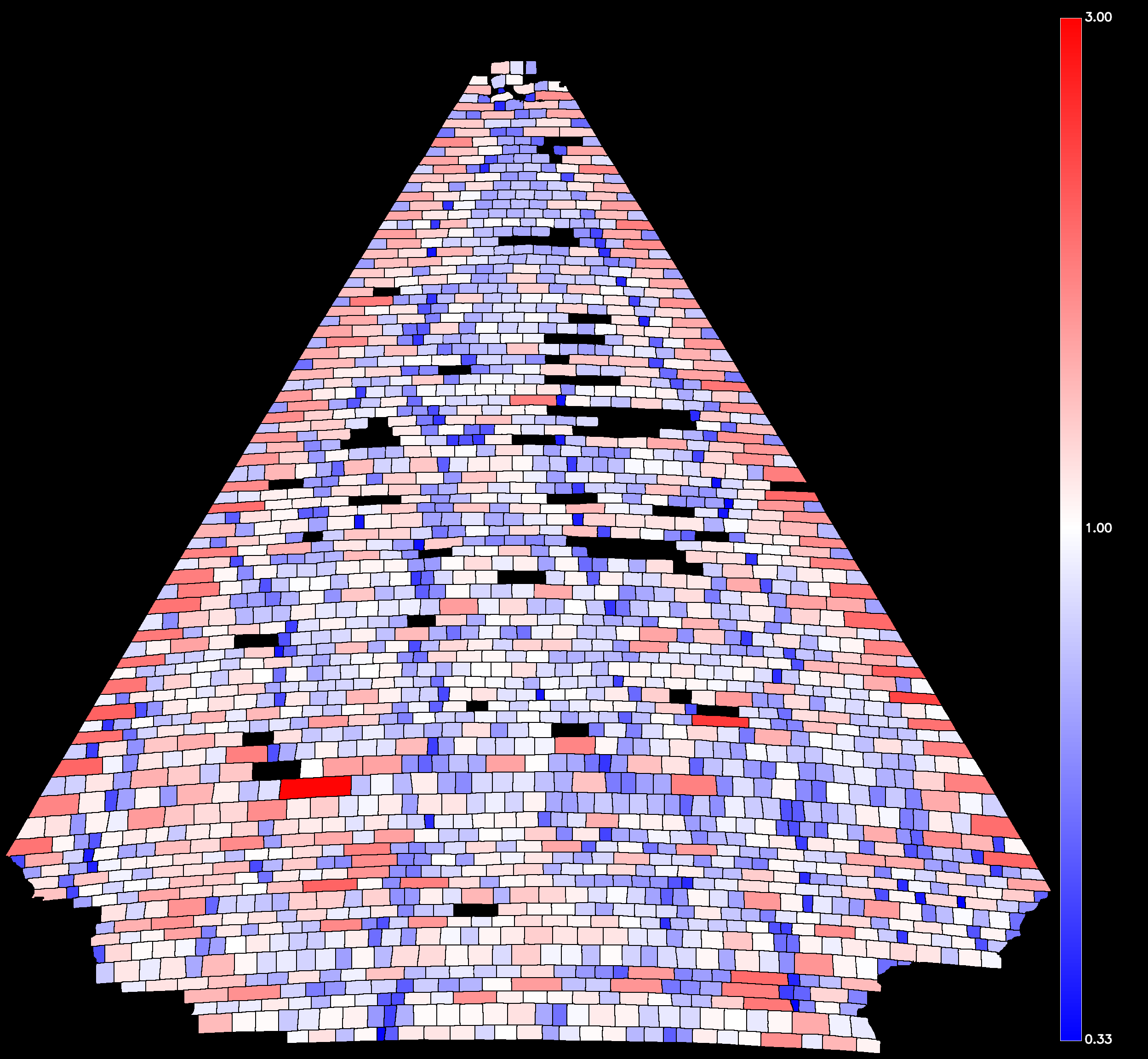

Relative width of each stone to its course (North)
Coloured by relative width to course, red = wider, blue = narrower

Relative height of each stone to its course (North)
Coloured by relative height to course, red = taller, blue = shorter

Slant of each stone's local masonry (North)
Coloured by the angle of the local masonry surrounding the stone, red = clockwise, blue = anticlockwise, in °

Slant of each stone (North)
Coloured by the angle of the stone, red = clockwise, blue = anticlockwise, in ° (calculated as the angle between the centers of the stones to either side)

Angle of the left edge of each stone (North)
Coloured by angle, red = clockwise, blue = anticlockwise, in °

Angle of the right edge of each stone (North)
Coloured by angle, red = clockwise, blue = anticlockwise, in °

Largest angle of each stone (North)
Coloured by angle, in °

Individual casing stones (North)
Coloured by casing stone

Strings of casing stones (North)
Coloured by strings of casing stones

Horizontal courses of casing stones (North)
Coloured by course

Extrapolated pyramid outline (North)
White lines show the projected pyramid outline. Colours are just by course.

Absolute width (North)
Coloured by width, scale is in meters

Absolute height (North)
Coloured by height, scale is in meters

Absolute size (North)
Coloured by size, scale is in square meters

Relative vertical offset of each stone from its course (North)
Coloured by the relative vertical offset from the course, red = stone is above course, blue = stone is below course (measured between centroid of casing stone, and centroid of the whole course)

Absolute vertical offset of each stone from its course (North)
Coloured by vertical offset from the course, red = stone is above course, blue = stone is below course, scale is in meters (measured between centroid of casing stone, and centroid of the whole course)

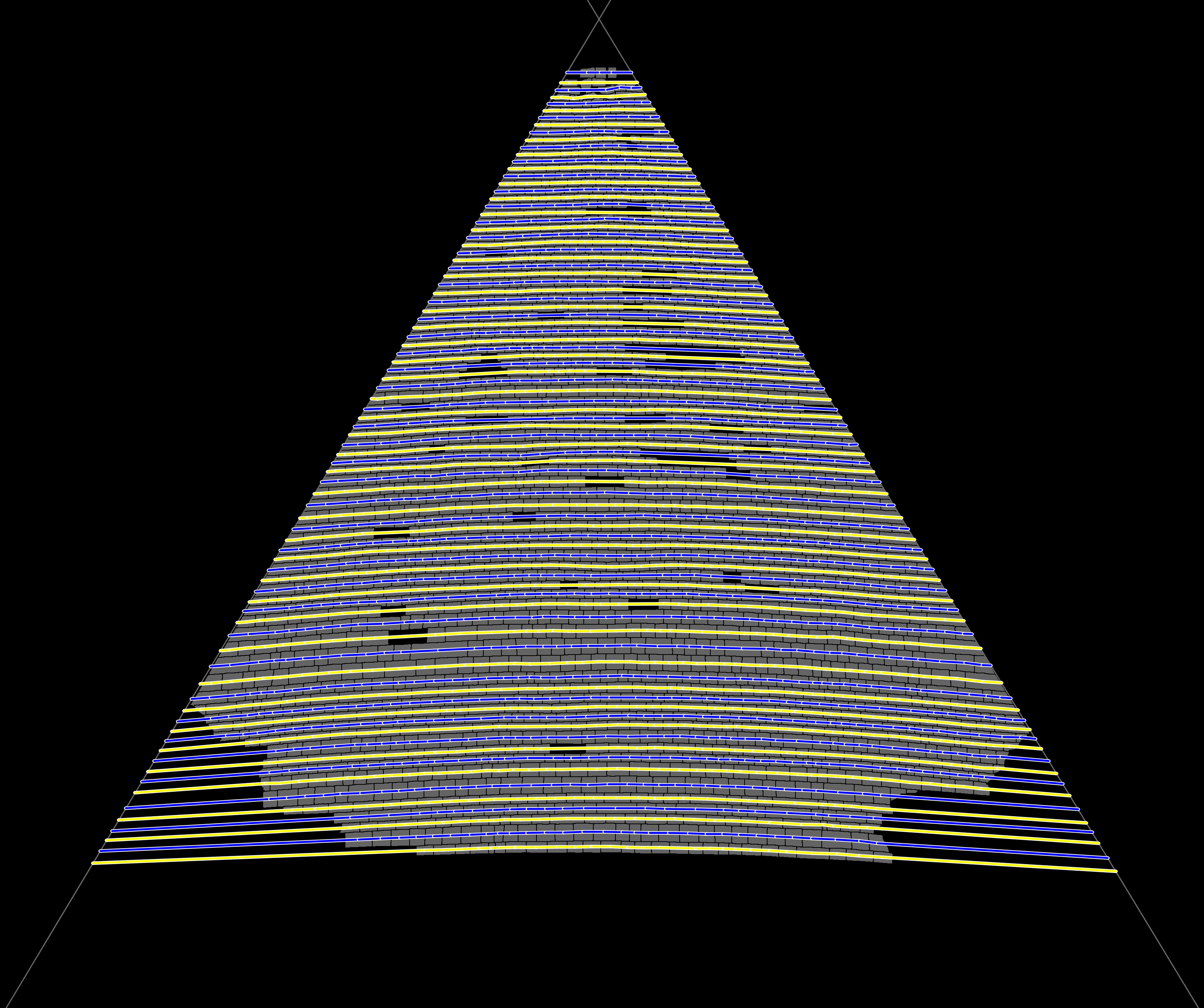

Projected courses (North)
Only an estimation

East Face

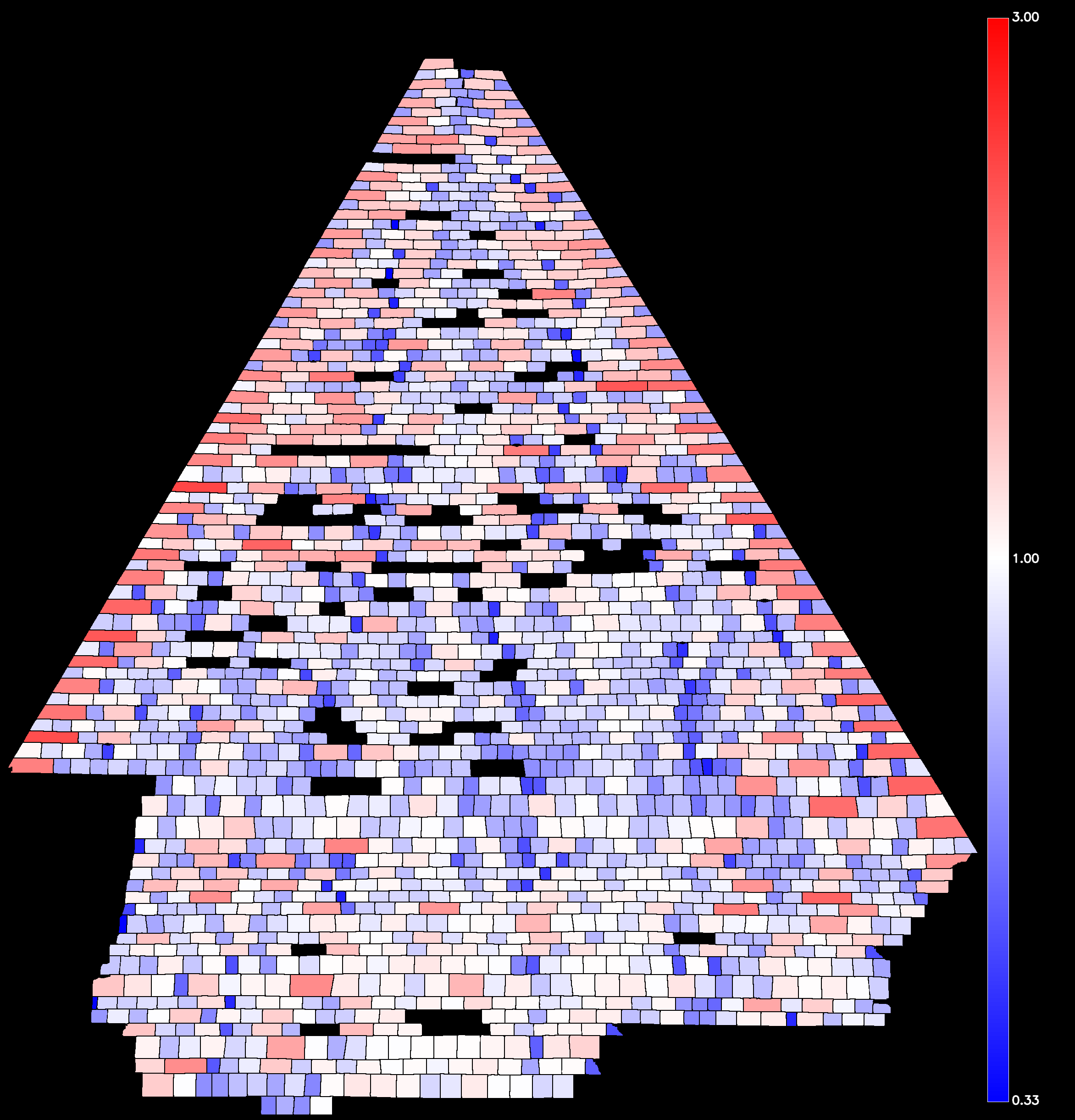

Relative width of each stone to the face average (East)
Coloured by width relative to the average, red = wider, blue = narrower

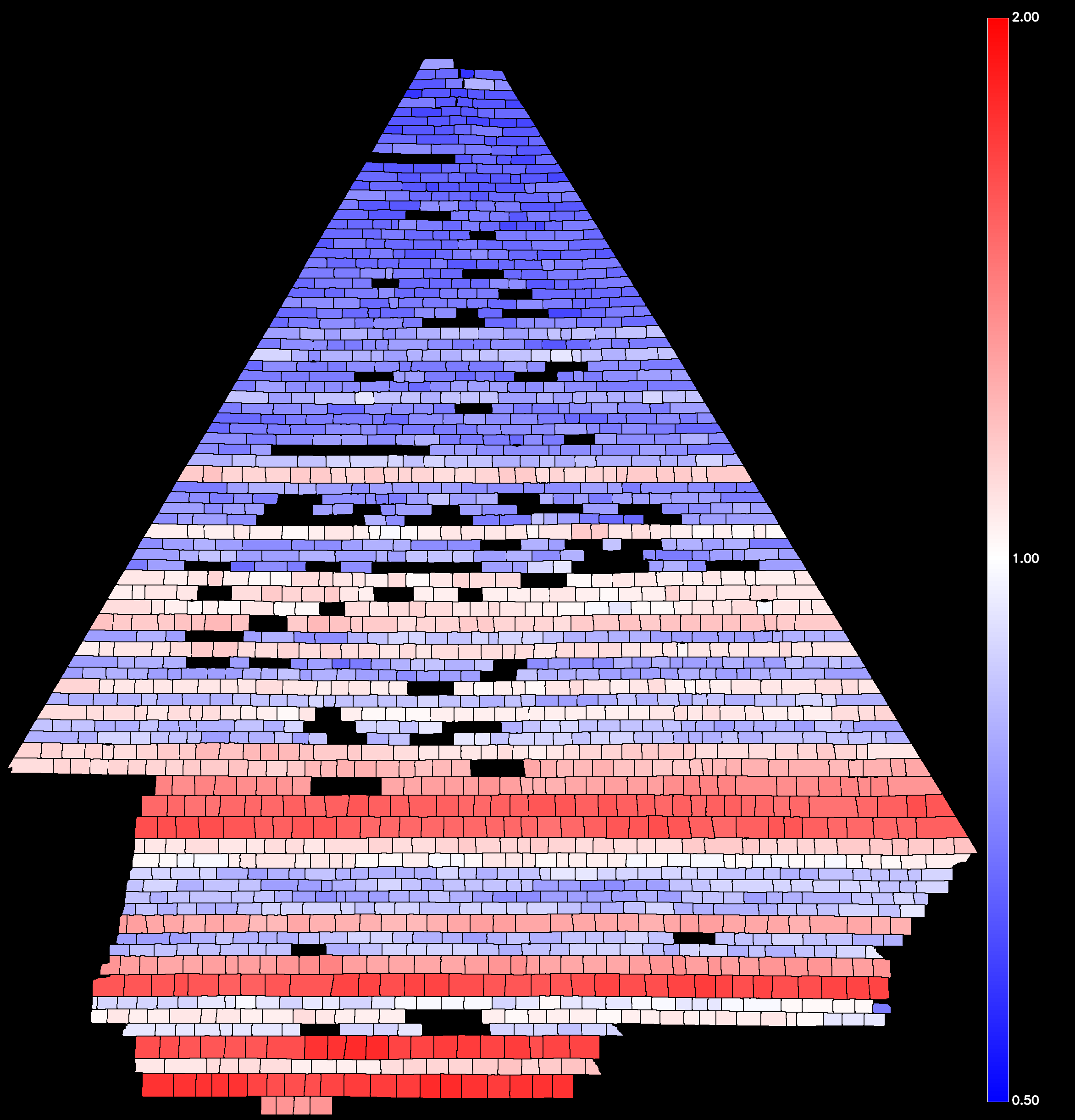

Relative height of each stone to the face average (East)
Coloured by height relative to the average, red = taller, blue = shorter

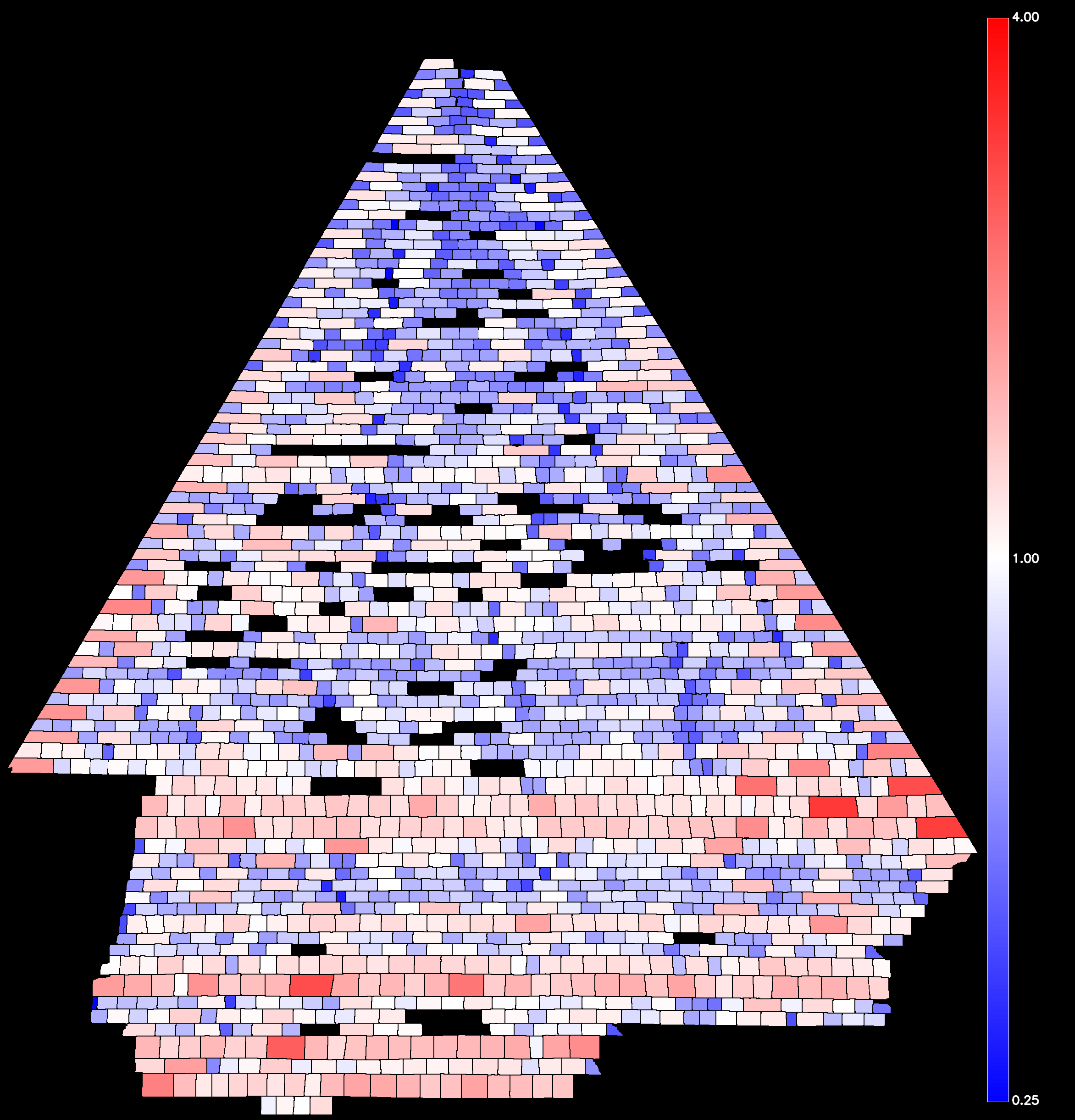

Relative size of each stone to the face average (East)
Coloured by size relative to the average, red = bigger, blue = smaller

Vertical offset of each stone from the edges of its course (East)
Coloured by vertical offset from the edges of the course, red = stone is above course edges, blue = stone is below course edges (note, course edge height is calculated as the average height of the closest 3 stones to the edge)

Relative width of each stone to its course (East)
Coloured by relative width to course, red = wider, blue = narrower

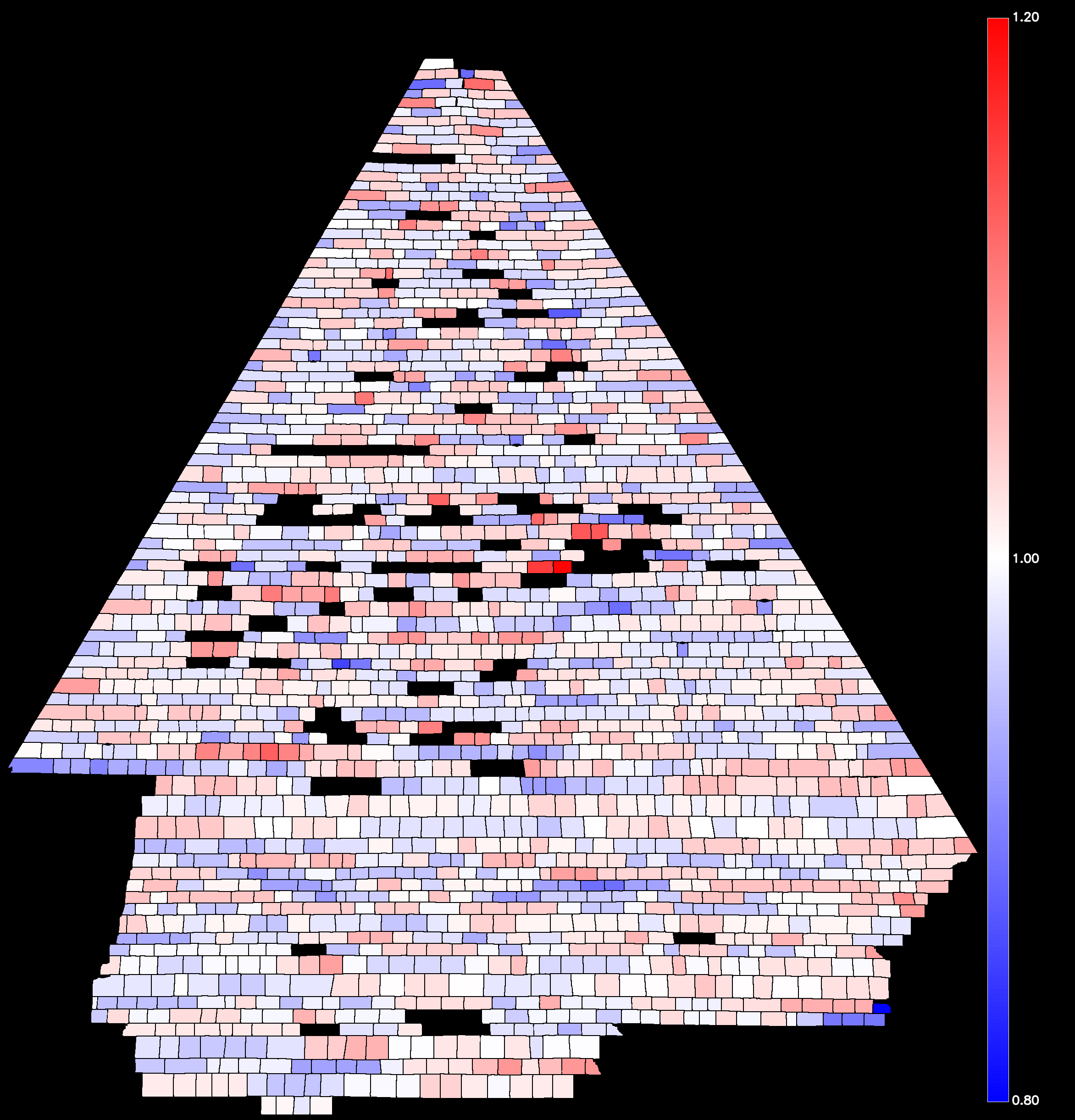

Relative height of each stone to its course (East)
Coloured by relative height to course, red = taller, blue = shorter

Slant of each stone's local masonry (East)
Coloured by the angle of the local masonry surrounding the stone, red = clockwise, blue = anticlockwise, in °

Slant of each stone (East)
Coloured by the angle of the stone, red = clockwise, blue = anticlockwise, in ° (calculated as the angle between the centers of the stones to either side)

Angle of the left edge of each stone (East)
Coloured by angle, red = clockwise, blue = anticlockwise, in °

Angle of the right edge of each stone (East)
Coloured by angle, red = clockwise, blue = anticlockwise, in °

Largest angle of each stone (East)
Coloured by angle, in °

Individual casing stones (East)
Coloured by casing stone

Strings of casing stones (East)
Coloured by strings of casing stones

Horizontal courses of casing stones (East)
Coloured by course

Extrapolated pyramid outline (East)
White lines show the projected pyramid outline. Colours are just by course.

Absolute width (East)
Coloured by width, scale is in meters

Absolute height (East)
Coloured by height, scale is in meters

Absolute size (East)
Coloured by size, scale is in square meters

Relative vertical offset of each stone from its course (East)
Coloured by the relative vertical offset from the course, red = stone is above course, blue = stone is below course (measured between centroid of casing stone, and centroid of the whole course)

Absolute vertical offset of each stone from its course (East)
Coloured by vertical offset from the course, red = stone is above course, blue = stone is below course, scale is in meters (measured between centroid of casing stone, and centroid of the whole course)

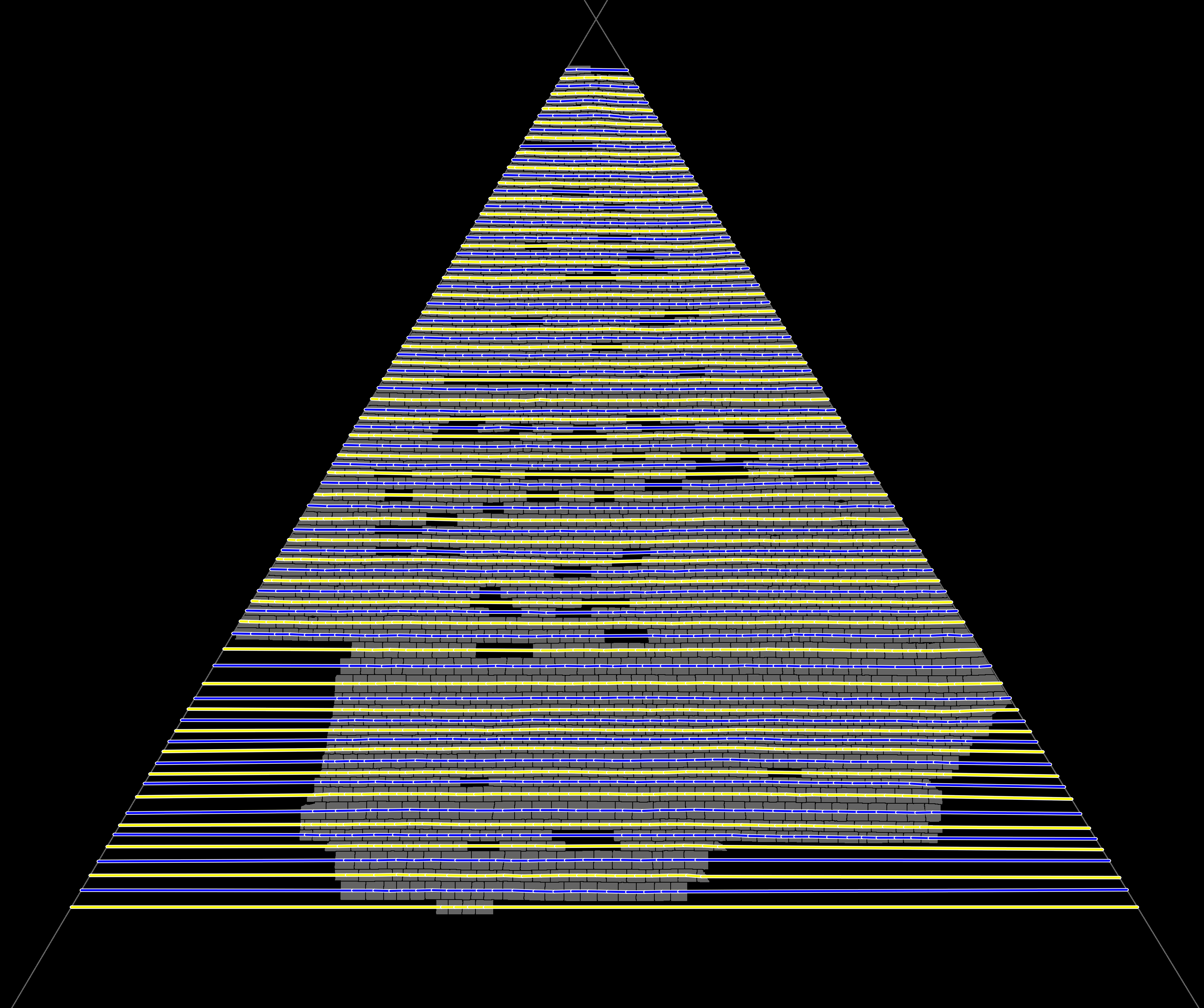

Projected courses (East)
Only an estimation

South Face

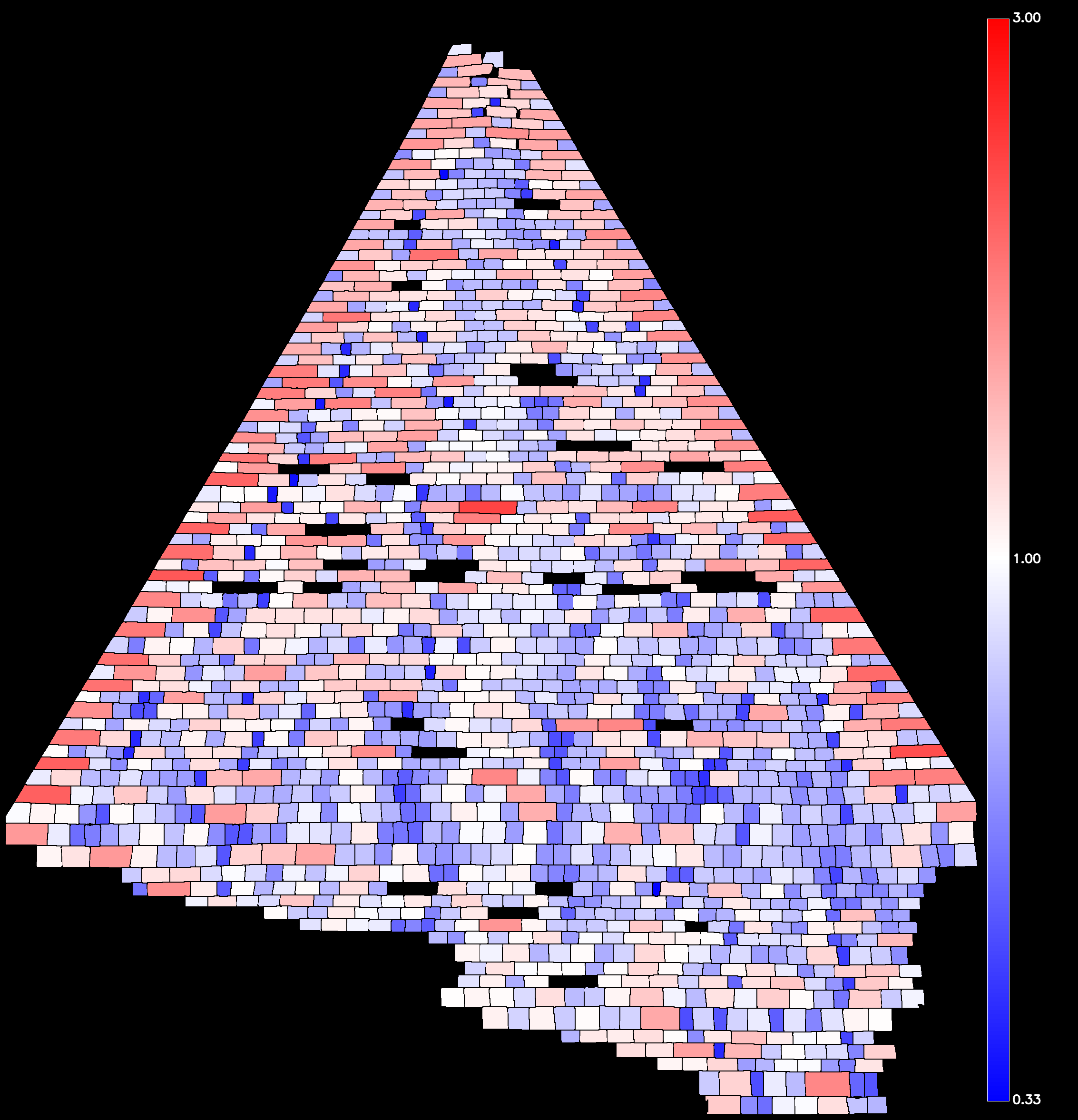

Relative width of each stone to the face average (South)
Coloured by width relative to the average, red = wider, blue = narrower

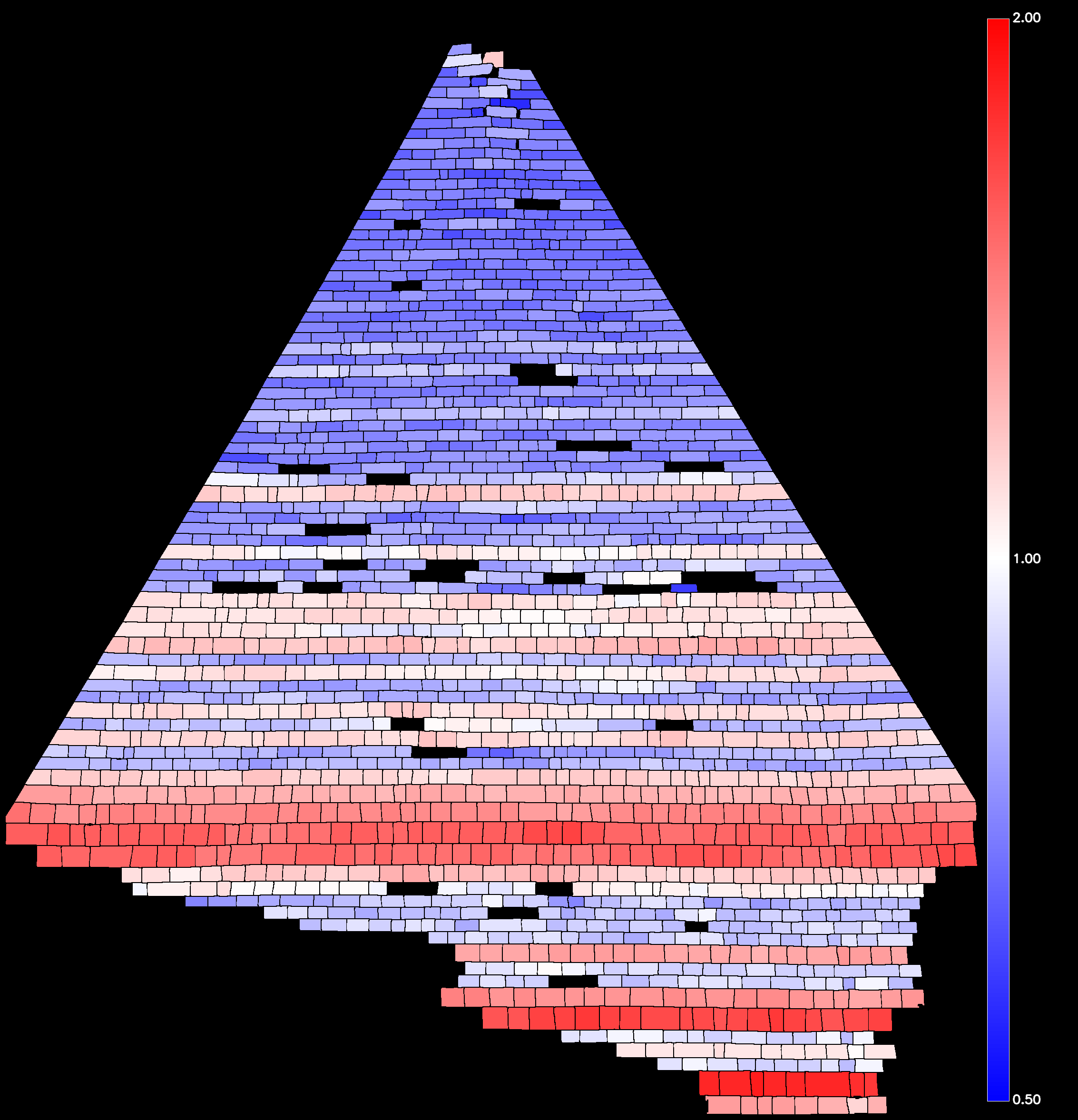

Relative height of each stone to the face average (South)
Coloured by height relative to the average, red = taller, blue = shorter

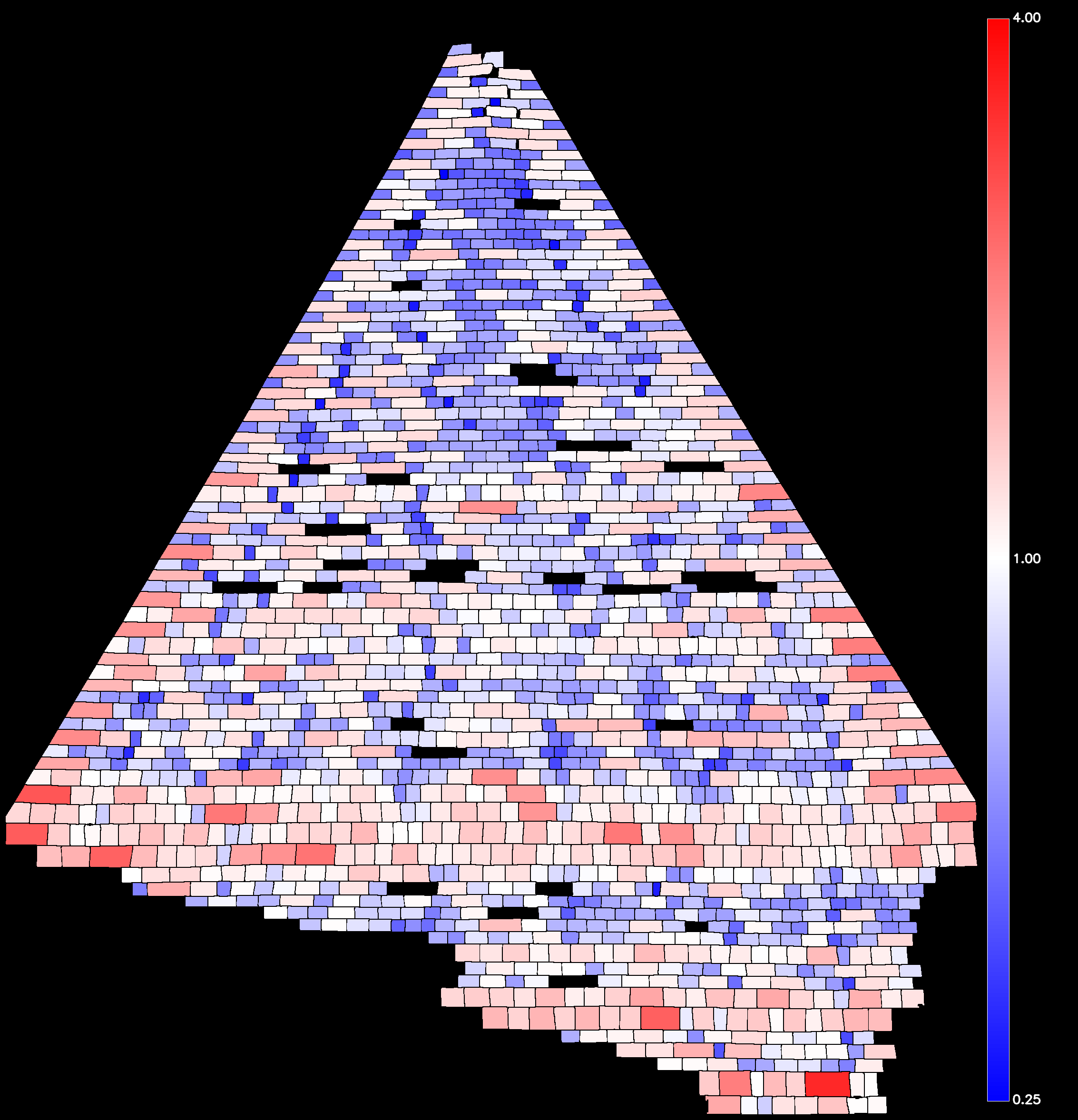

Relative size of each stone to the face average (South)
Coloured by size relative to the average, red = bigger, blue = smaller

Vertical offset of each stone from the edges of its course (South)
Coloured by vertical offset from the edges of the course, red = stone is above course edges, blue = stone is below course edges (note, course edge height is calculated as the average height of the closest 3 stones to the edge)

Relative width of each stone to its course (South)
Coloured by relative width to course, red = wider, blue = narrower

Relative height of each stone to its course (South)
Coloured by relative height to course, red = taller, blue = shorter

Slant of each stone's local masonry (South)
Coloured by the angle of the local masonry surrounding the stone, red = clockwise, blue = anticlockwise, in °

Slant of each stone (South)
Coloured by the angle of the stone, red = clockwise, blue = anticlockwise, in ° (calculated as the angle between the centers of the stones to either side)

Angle of the left edge of each stone (South)
Coloured by angle, red = clockwise, blue = anticlockwise, in °

Angle of the right edge of each stone (South)
Coloured by angle, red = clockwise, blue = anticlockwise, in °

Largest angle of each stone (South)
Coloured by angle, in °

Individual casing stones (South)
Coloured by casing stone

Strings of casing stones (South)
Coloured by strings of casing stones

Horizontal courses of casing stones (South)
Coloured by course

Extrapolated pyramid outline (South)
White lines show the projected pyramid outline. Colours are just by course.

Absolute width (South)
Coloured by width, scale is in meters

Absolute height (South)
Coloured by height, scale is in meters

Absolute size (South)
Coloured by size, scale is in square meters

Relative vertical offset of each stone from its course (South)
Coloured by the relative vertical offset from the course, red = stone is above course, blue = stone is below course (measured between centroid of casing stone, and centroid of the whole course)

Absolute vertical offset of each stone from its course (South)
Coloured by vertical offset from the course, red = stone is above course, blue = stone is below course, scale is in meters (measured between centroid of casing stone, and centroid of the whole course)

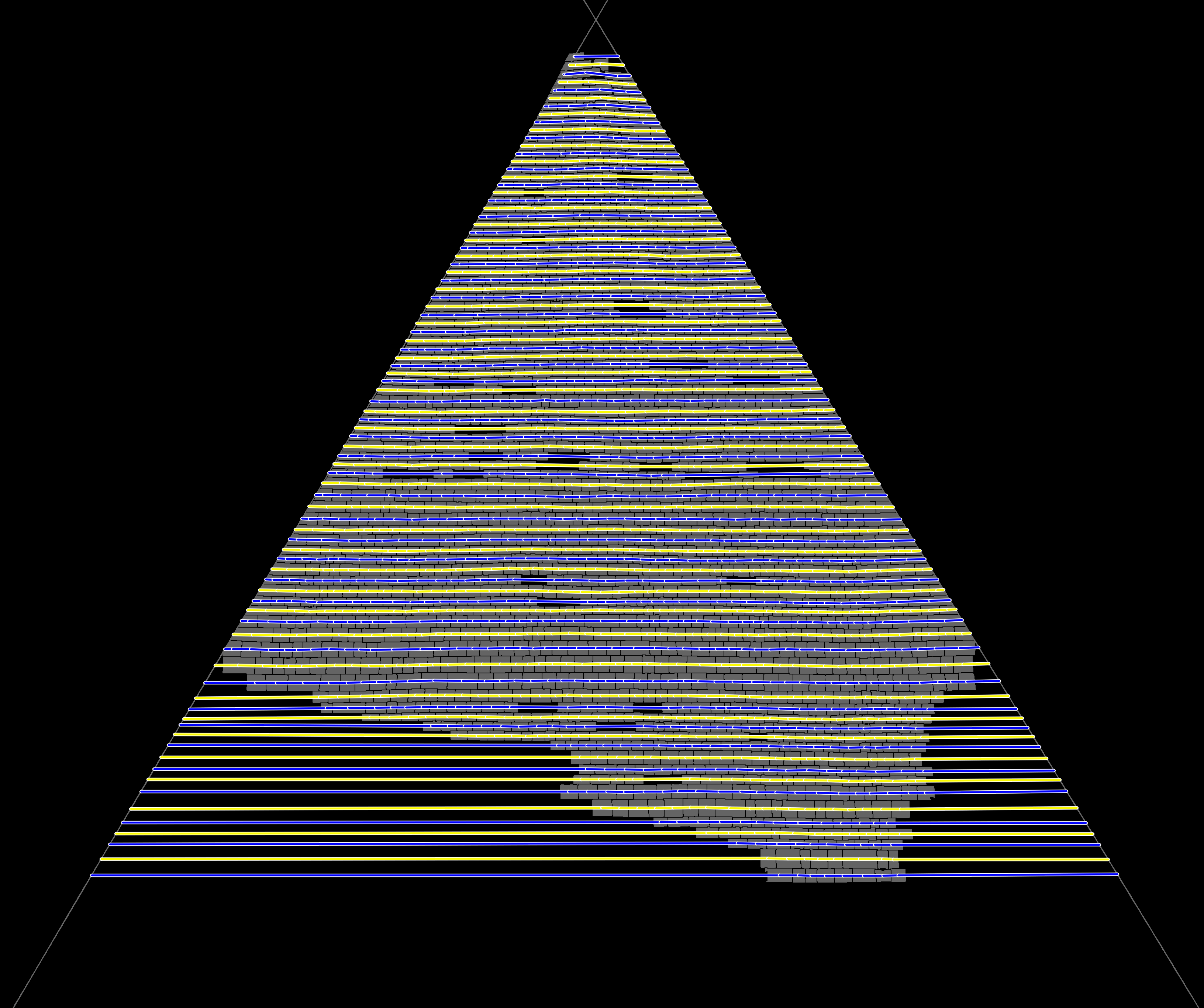

Projected courses (South)
Only an estimation

All Faces

Relative width of each stone to the face average
Coloured by width relative to the average, red = wider, blue = narrower

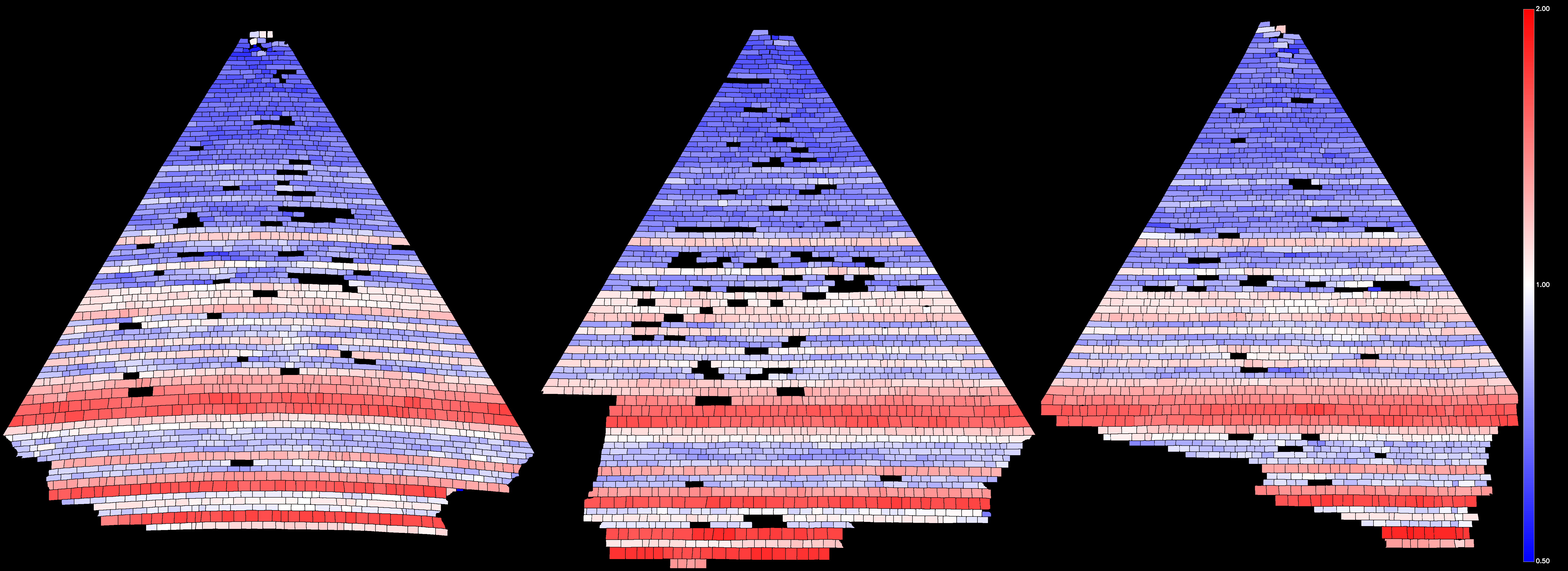

Relative height of each stone to the face average
Coloured by height relative to the average, red = taller, blue = shorter

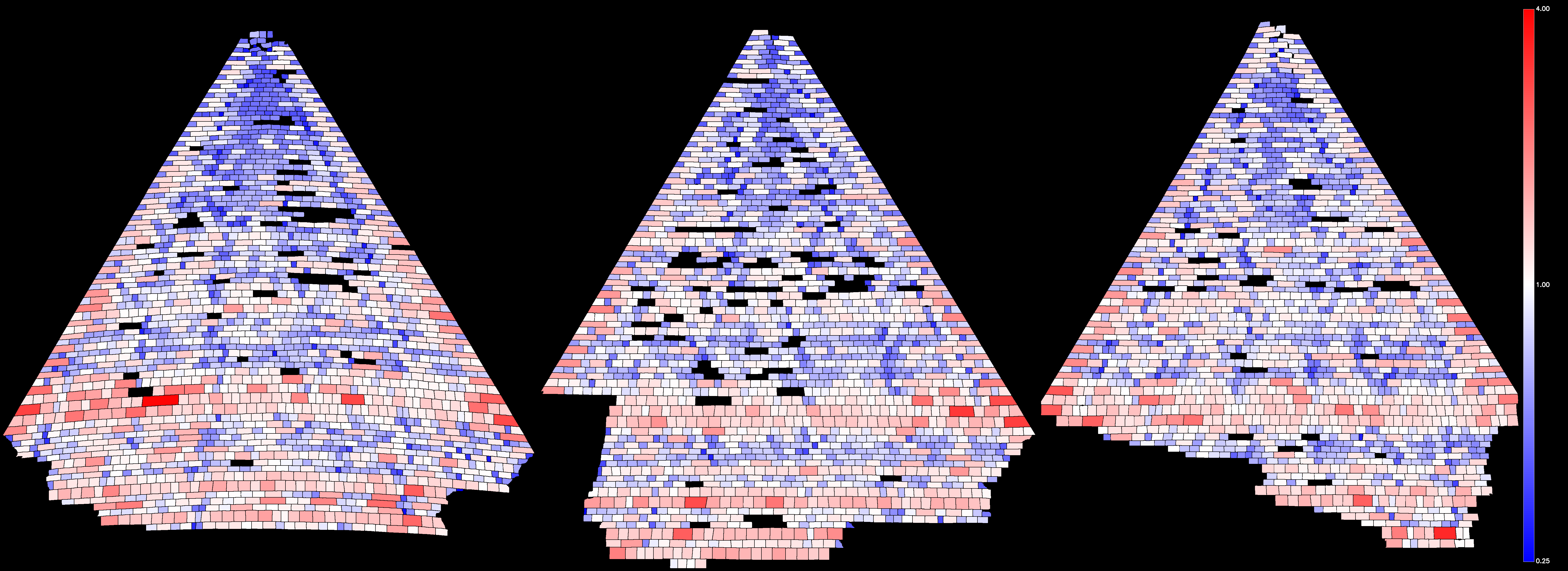

Relative size of each stone to the face average
Coloured by size relative to the average, red = bigger, blue = smaller

Vertical offset of each stone from the edges of its course
Coloured by vertical offset from the edges of the course, red = stone is above course edges, blue = stone is below course edges (note, course edge height is calculated as the average height of the closest 3 stones to the edge)

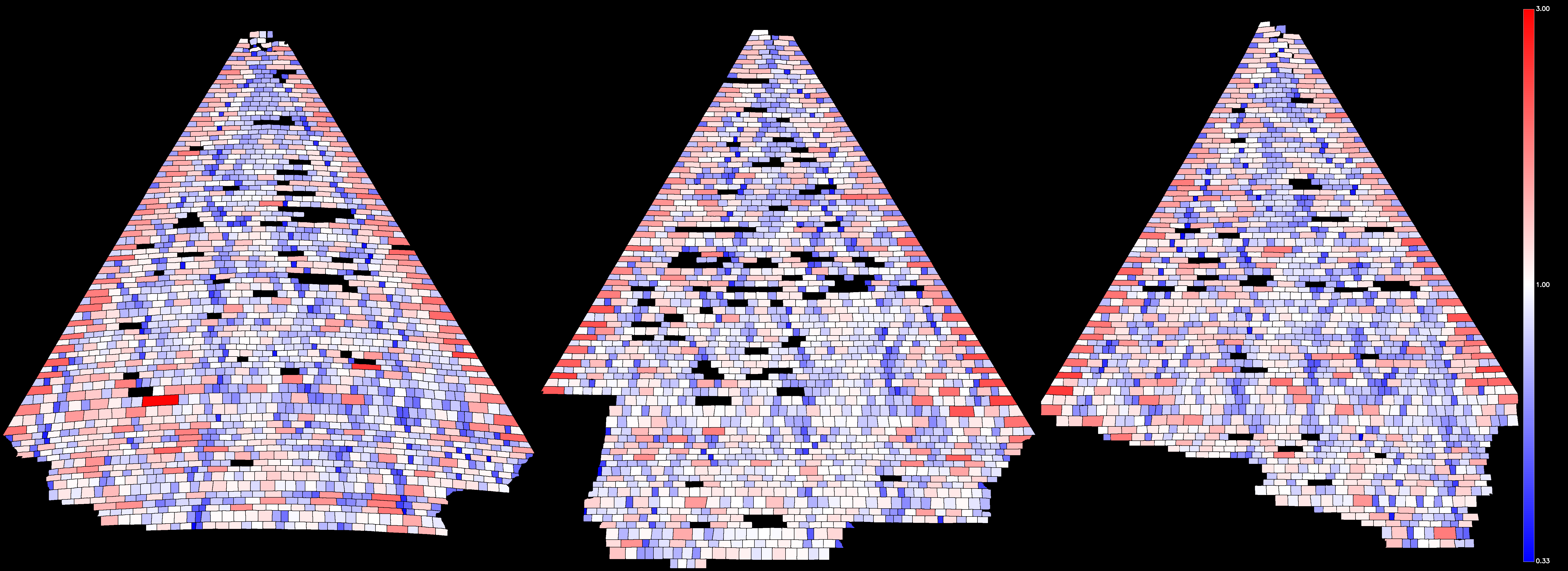

Relative width of each stone to its course
Coloured by relative width to course, red = wider, blue = narrower

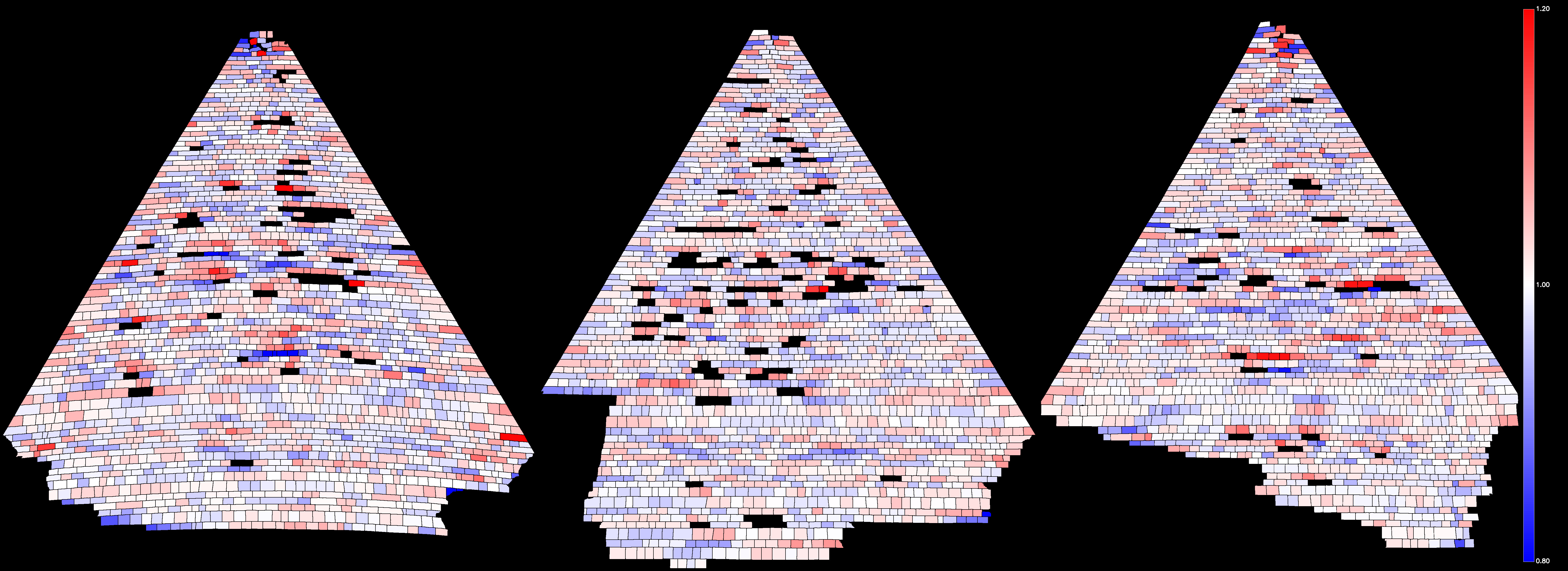

Relative height of each stone to its course
Coloured by relative height to course, red = taller, blue = shorter

Slant of each stone's local masonry
Coloured by the angle of the local masonry surrounding the stone, red = clockwise, blue = anticlockwise, in °

Slant of each stone
Coloured by the angle of the stone, red = clockwise, blue = anticlockwise, in ° (calculated as the angle between the centers of the stones to either side)

Angle of the left edge of each stone
Coloured by angle, red = clockwise, blue = anticlockwise, in °

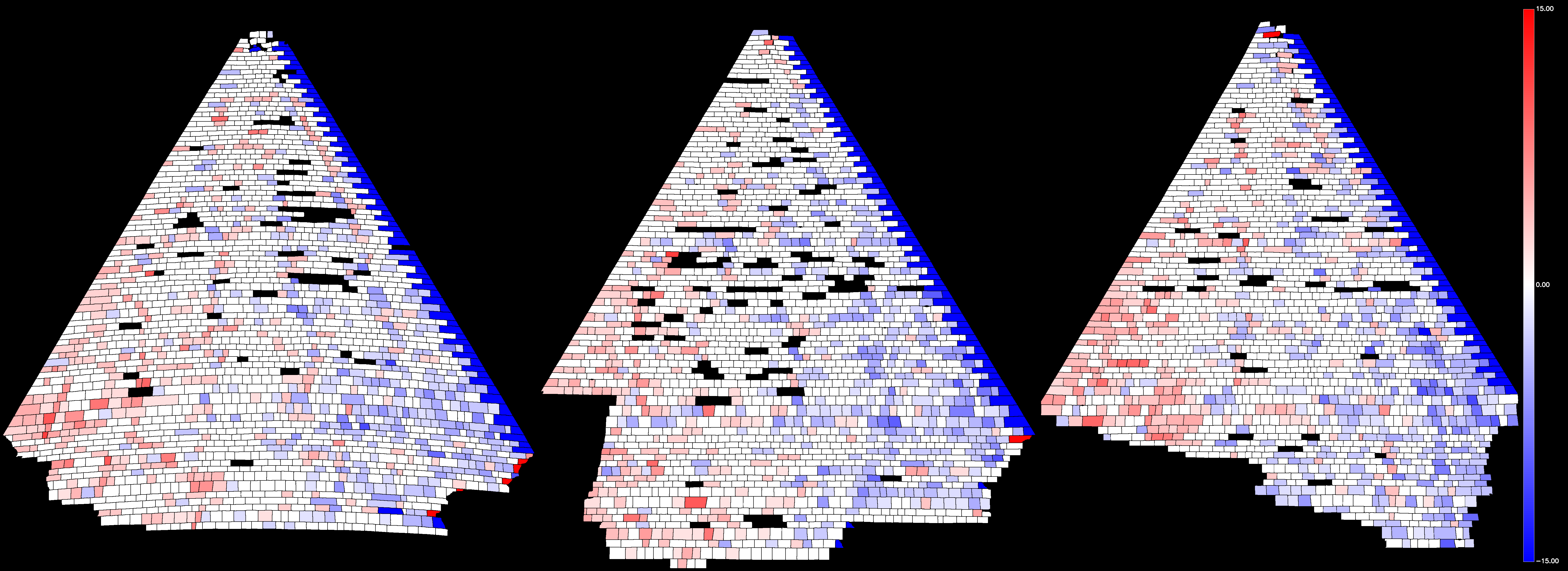

Angle of the right edge of each stone
Coloured by angle, red = clockwise, blue = anticlockwise, in °

Largest angle of each stone
Coloured by angle, in °

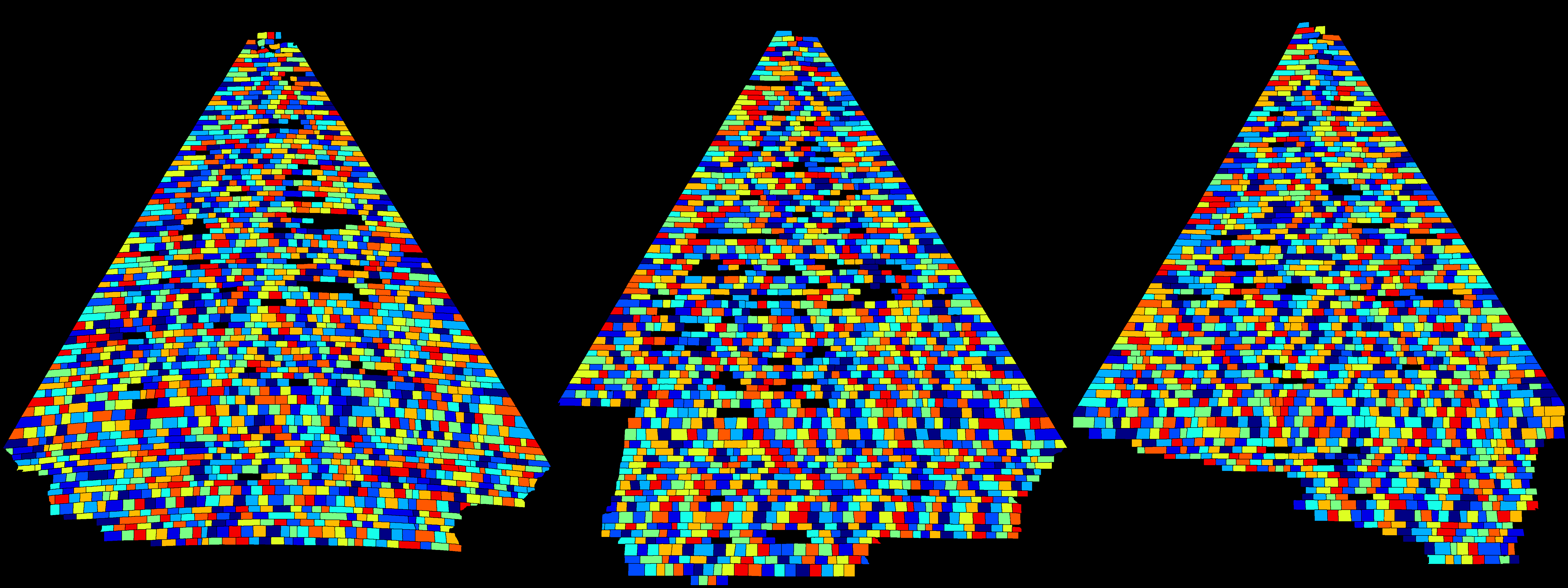

Individual casing stones
Coloured by casing stone

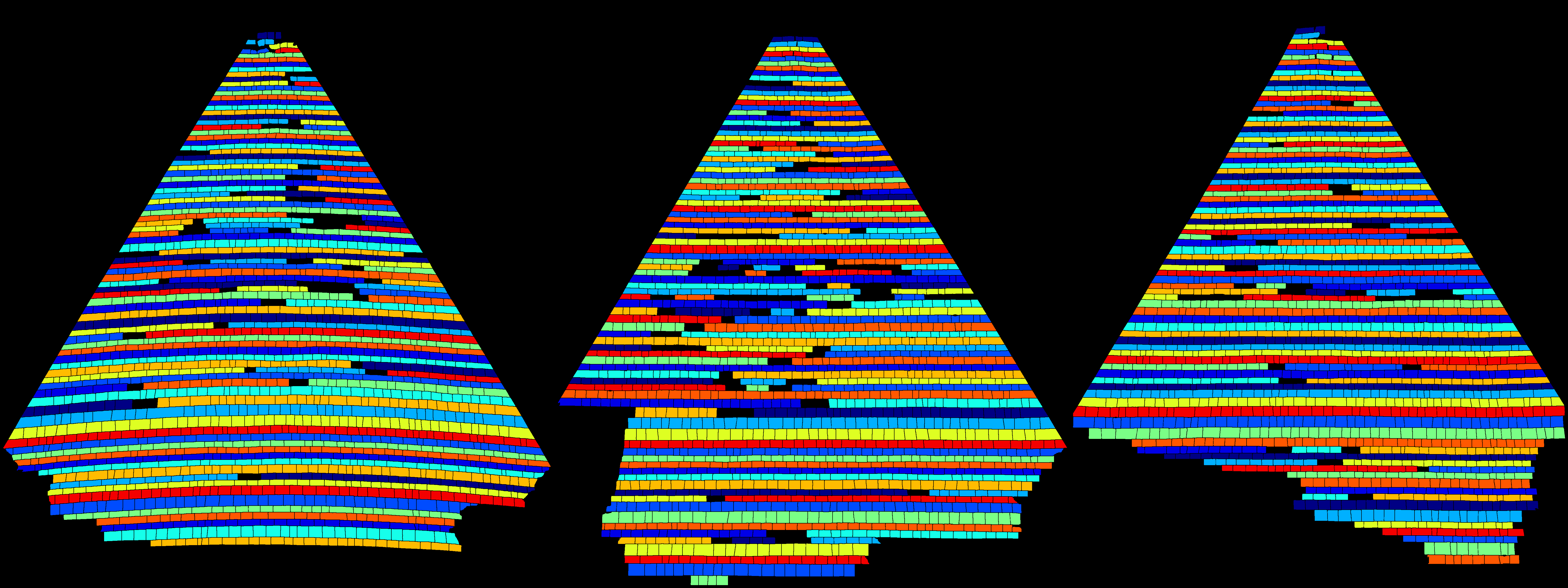

Strings of casing stones
Coloured by strings of casing stones

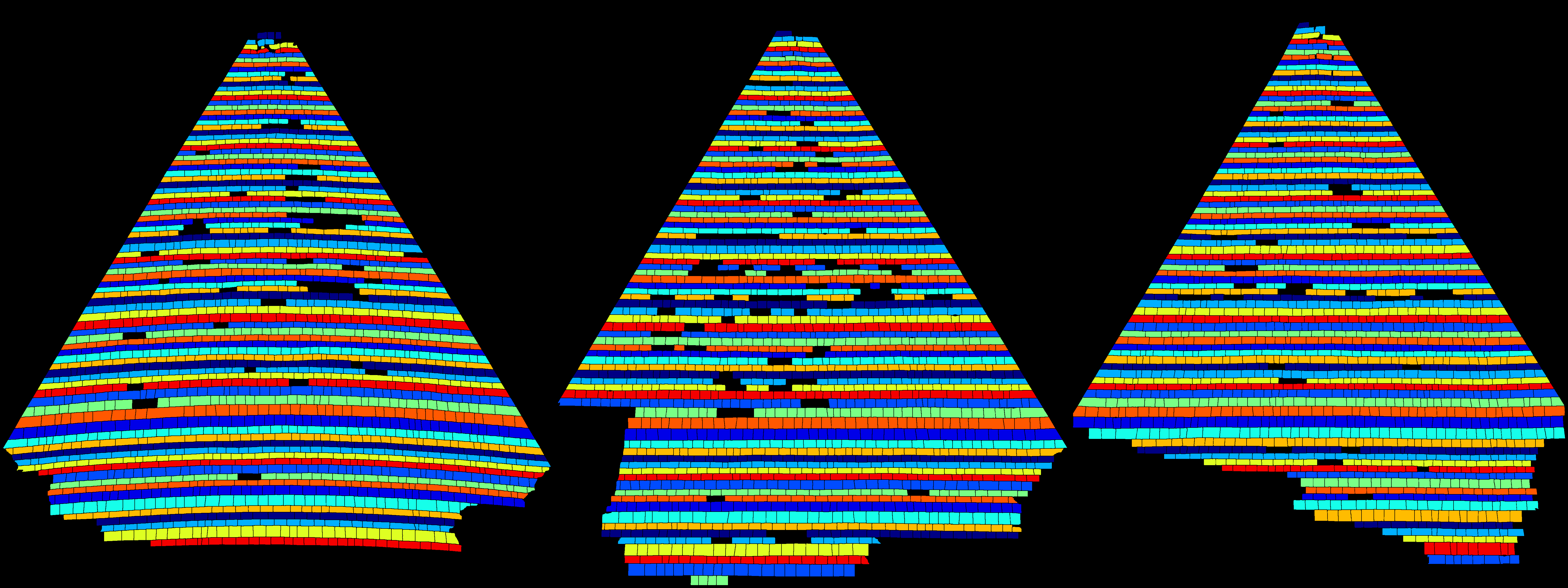

Horizontal courses of casing stones
Coloured by course

Extrapolated pyramid outline
White lines show the projected pyramid outline. Colours are just by course.

Absolute width
Coloured by width, scale is in meters

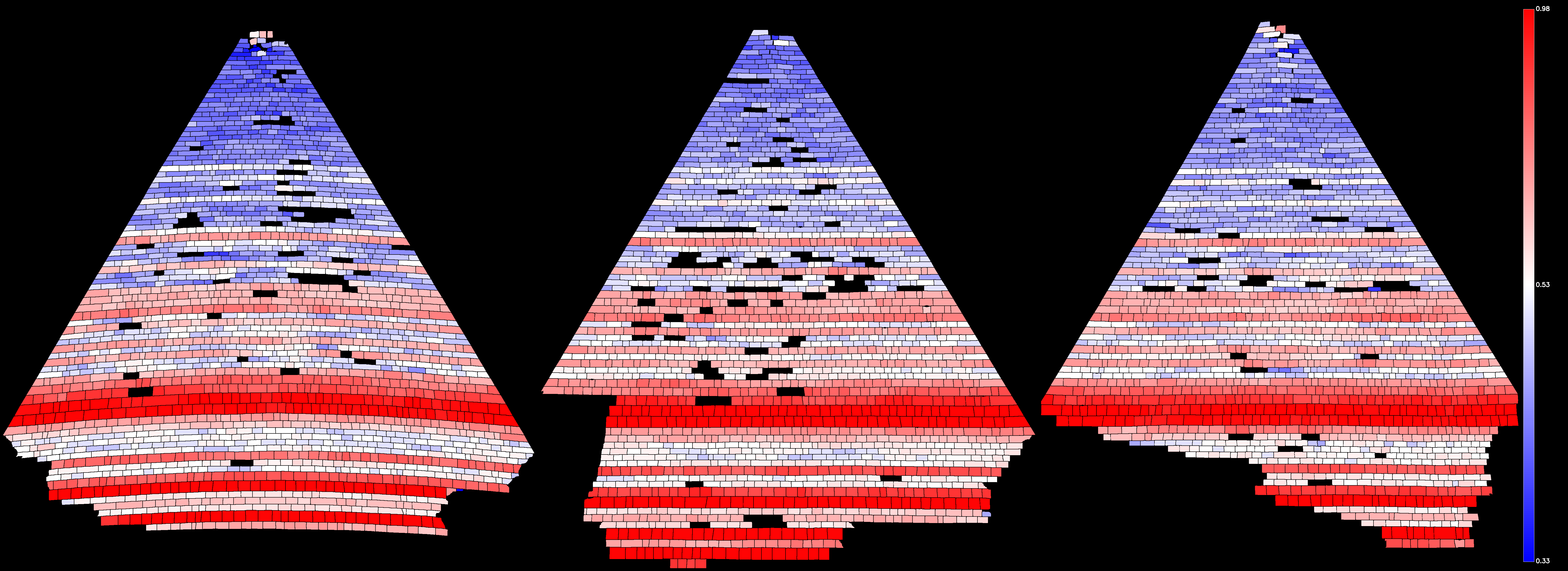

Absolute height
Coloured by height, scale is in meters

Absolute size
Coloured by size, scale is in square meters

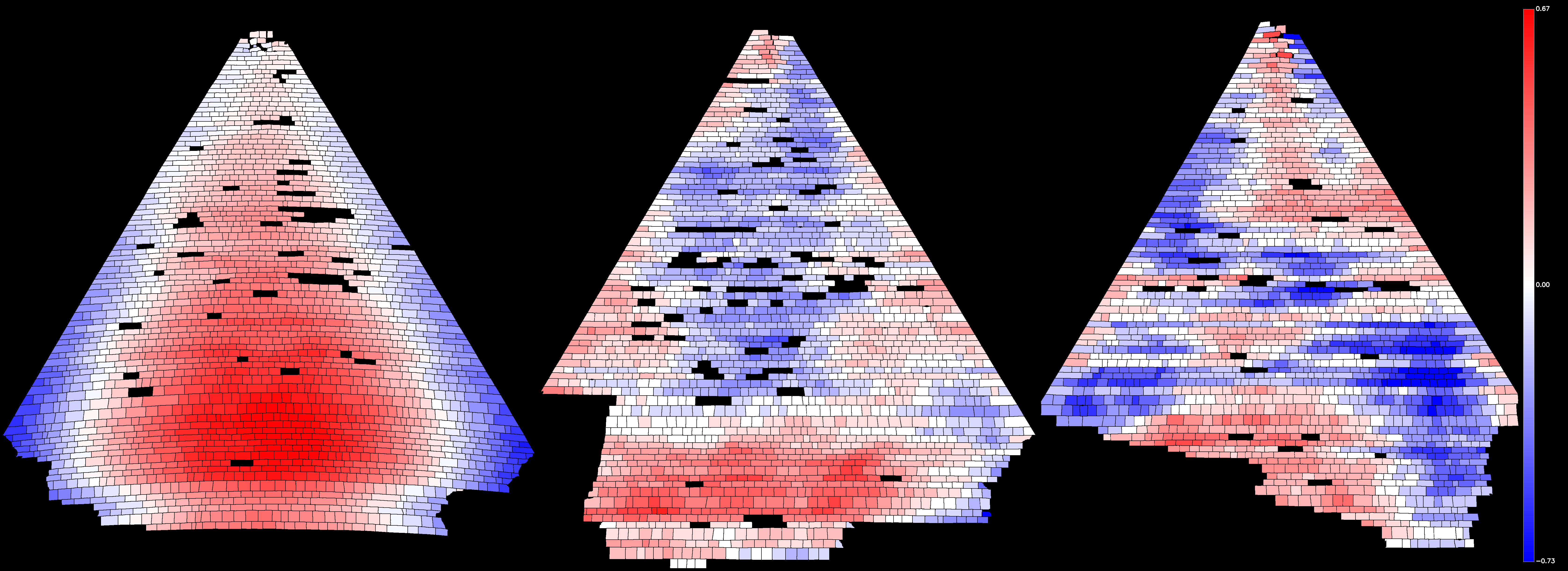

Relative vertical offset of each stone from its course
Coloured by the relative vertical offset from the course, red = stone is above course, blue = stone is below course (measured between centroid of casing stone, and centroid of the whole course)

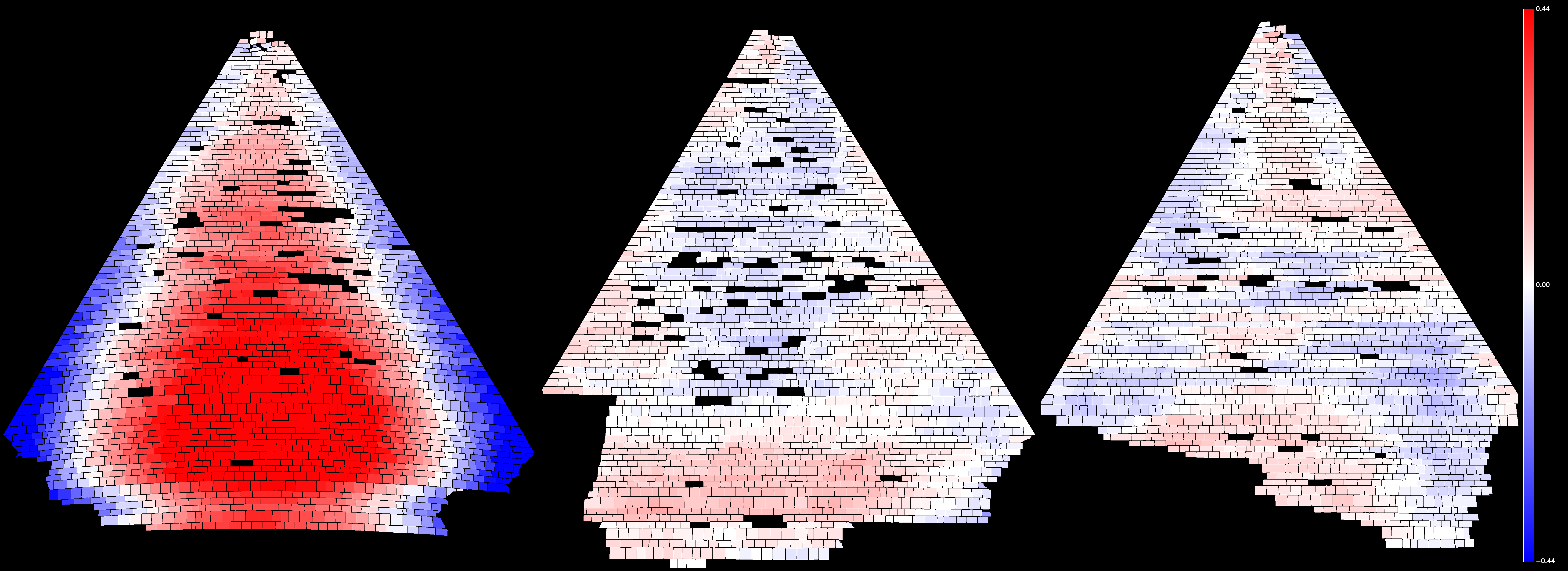

Absolute vertical offset of each stone from its course
Coloured by vertical offset from the course, red = stone is above course, blue = stone is below course, scale is in meters (measured between centroid of casing stone, and centroid of the whole course)
